FlowFuse Tables

From FlowFuse v2.20.0 Teams (Enterprise teams only) can create a relational database to use to store data.

You can create a database by selecting the Tables entry in the left hand menu

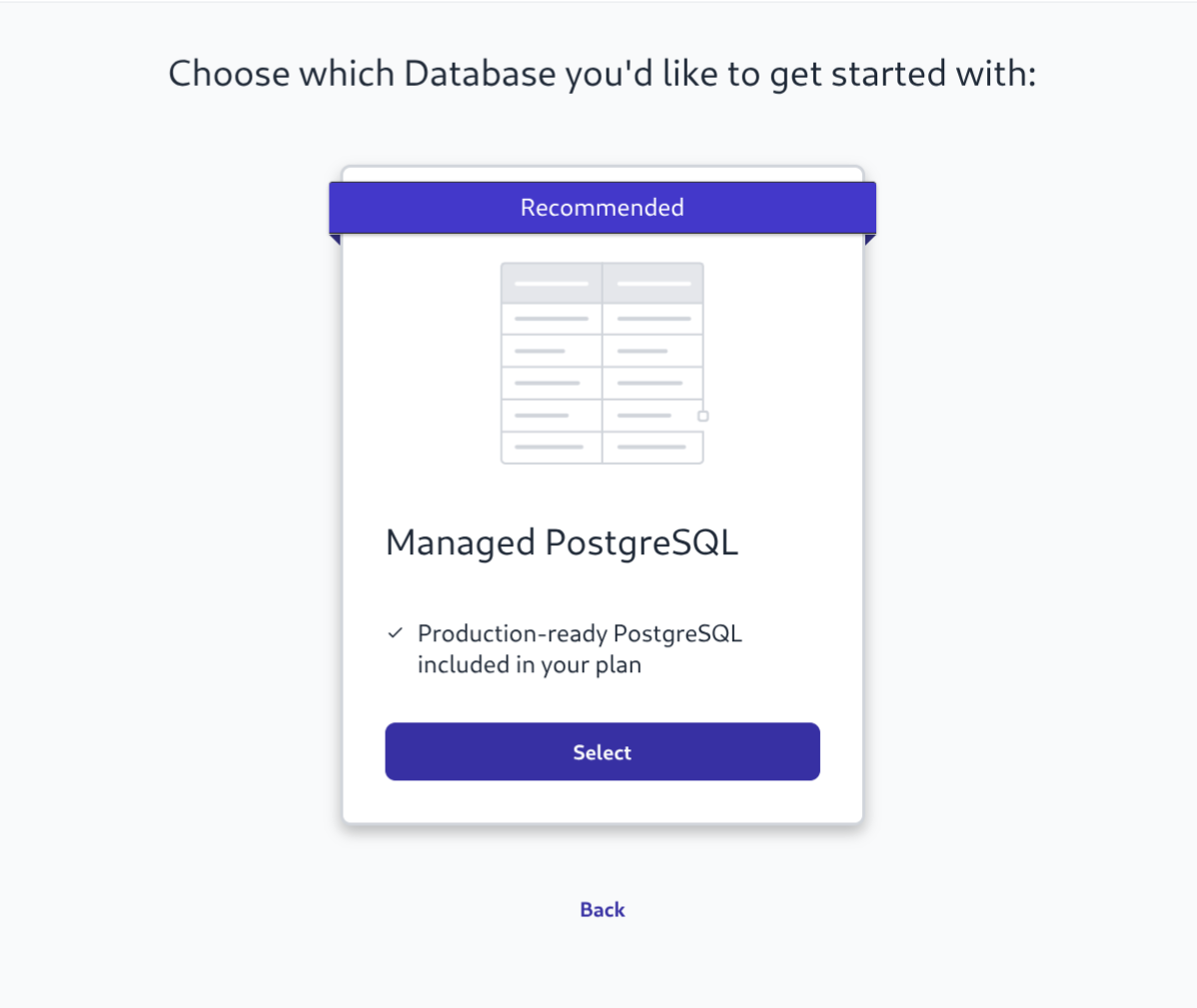

Screenshot of FF Tables create database menu

Once you have created a database you can use the wizard to create some tables. The wizard offers a subset of the most used column types and has the option to set default values and generate sequences for ids.

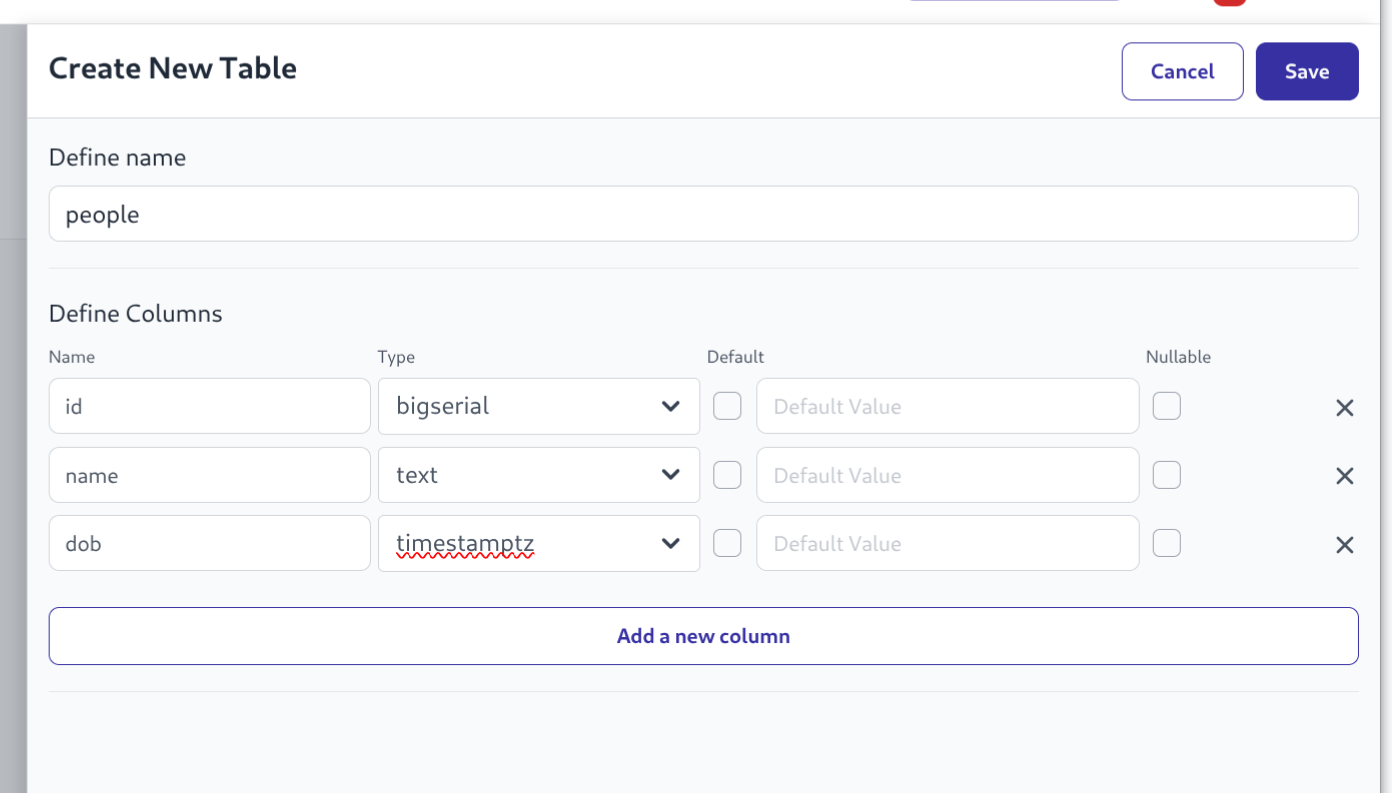

Screenshot of create tables wizard

Once the tables have data in them then the first 10 rows will be displayed in the Explorer tab.

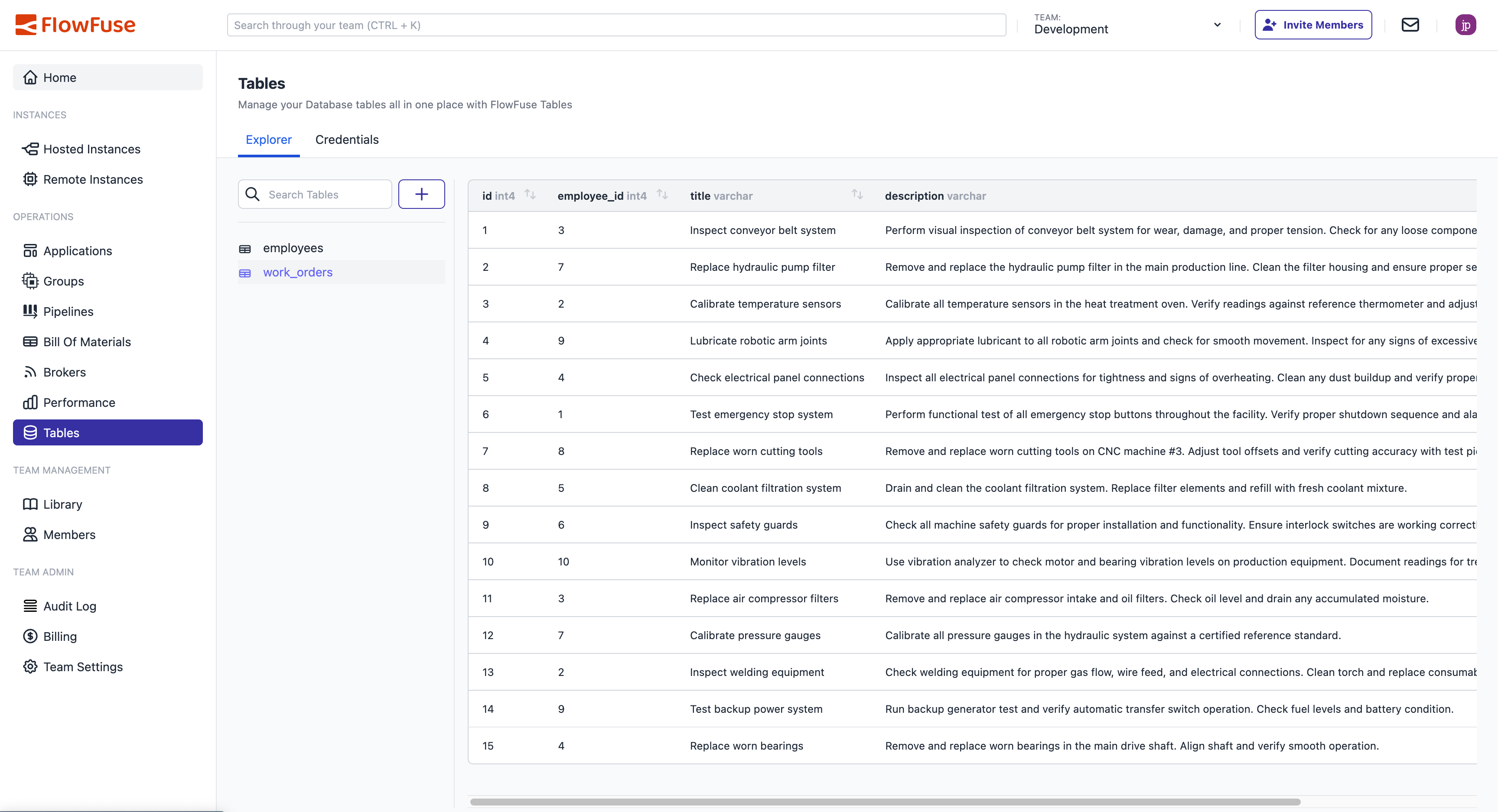

Screenshot of Tables Explorer

Query Nodes

FlowFuse Node-RED instances come with a Query Node that will be enabled if running in a Team with a FlowFuse Tables database enabled. This node will automatically import the required credentials to connect to the database.

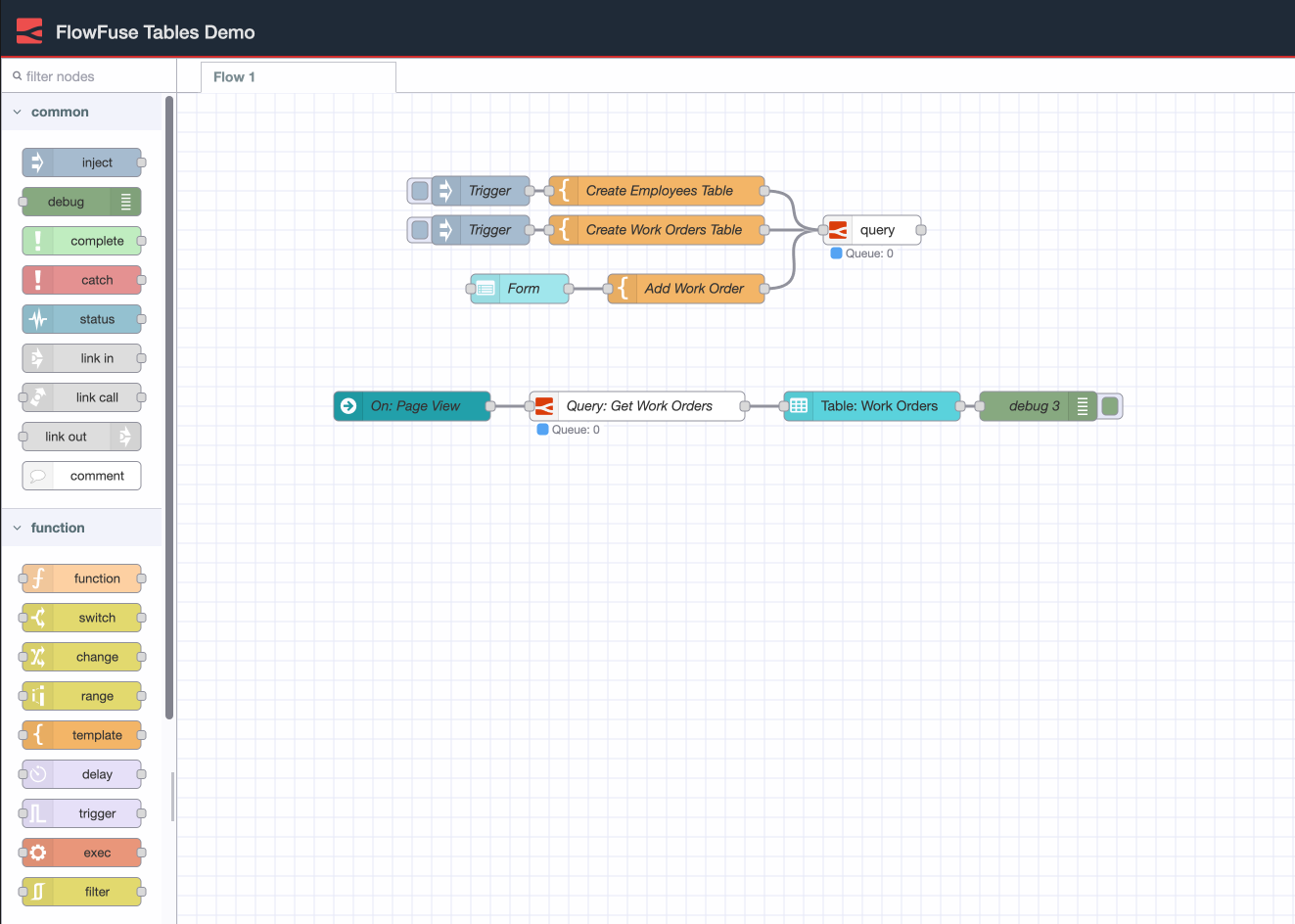

Screenshot of Node-RED query node

Postgres Clients

You can connect any Postgres Client to the FlowFuse Tables database using the information on the Credentials tab

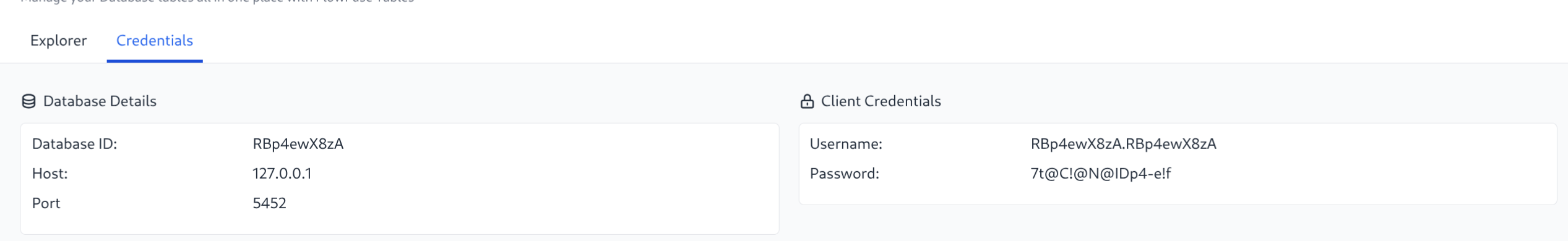

Screenshot of credentials
